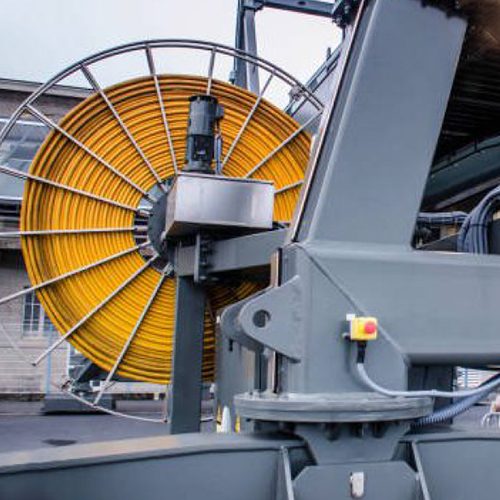

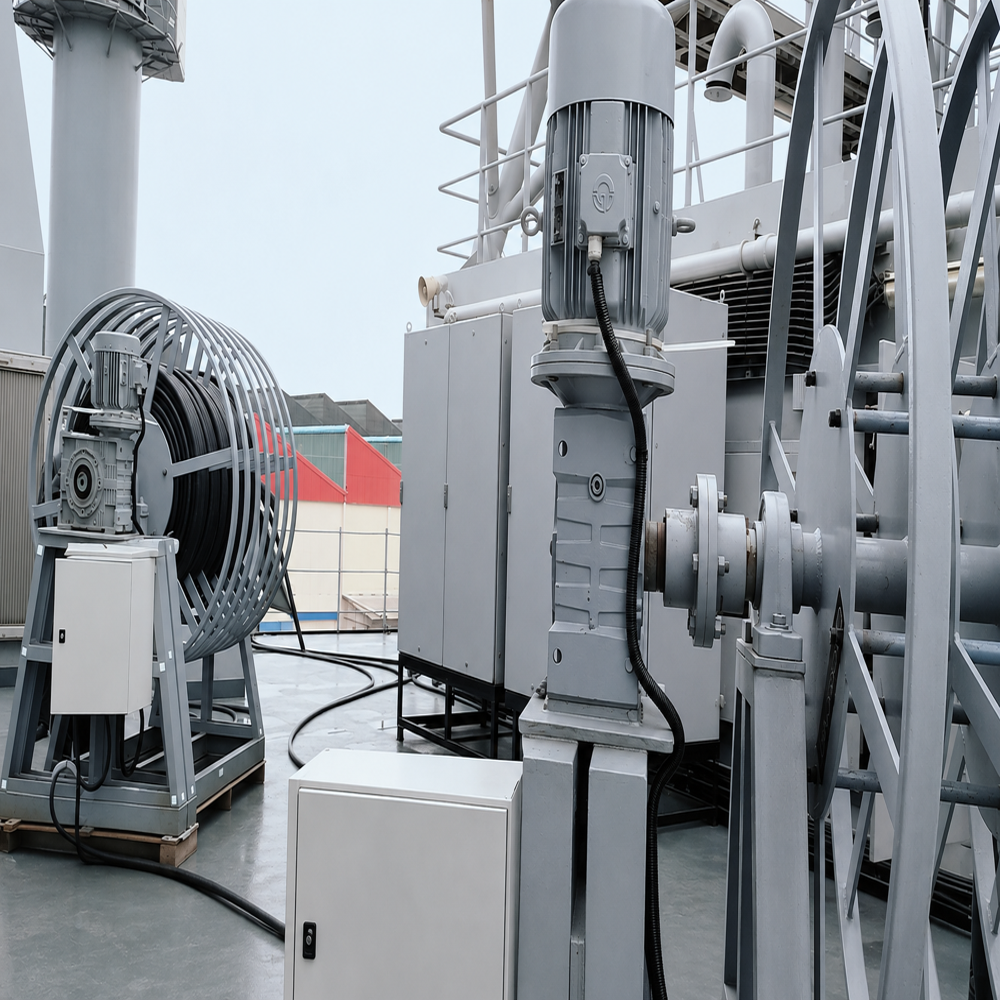

Cable Reeling Drum

• Application
• Other, Material handling equipment, cranes, hoists, mobile machinery, conveyor systems

• Armored Material
• Steel Armored (optional)

• Cable Type
• Power / Control / Flat / Round

• Color
• Yellow / Custom

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Stranded

• Connector Color
• Black / Custom

• Core Material
• Copper

• Core Number
• 2 to 37

• Diameter
• As per cable and drum size

• Dielectiric Strength
• >2.5kV

• Dimension (L*W*H)
• As per model specification or customer requirement

• Features
• Heavy duty design, robust construction, high performance, smooth cable winding and unwinding, electrically operated

• Impedance
• Standard (as per cable type)

• Install Type
• Fixed / Mobile / Rotating

• Insulation
• PVC / Synthetic Rubber

• Insulation Material
• Other, PVC / Rubber / Custom Requirement

• Jacket Color
• Other, Black / Yellow / Custom

• Jacket Material
• Other, PVC / Rubber

• Length
• Variable, as per request or application

• Locking Type
• Manual / Automatic Lock Available

• Material
• Mild Steel / Cast Iron / Custom

• Number of Conductor
• 2 to 37 (as per design)

• Operating Temperature
• -10C to +80C

• Product Type

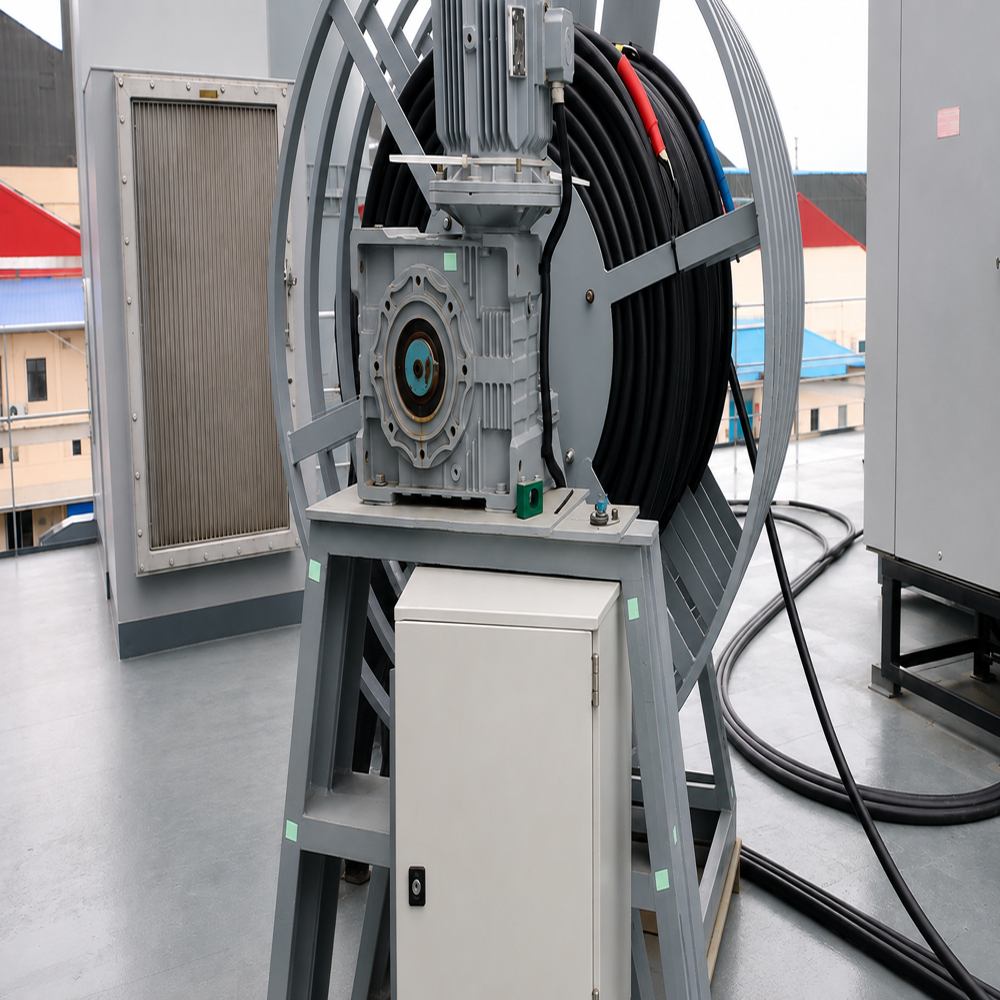

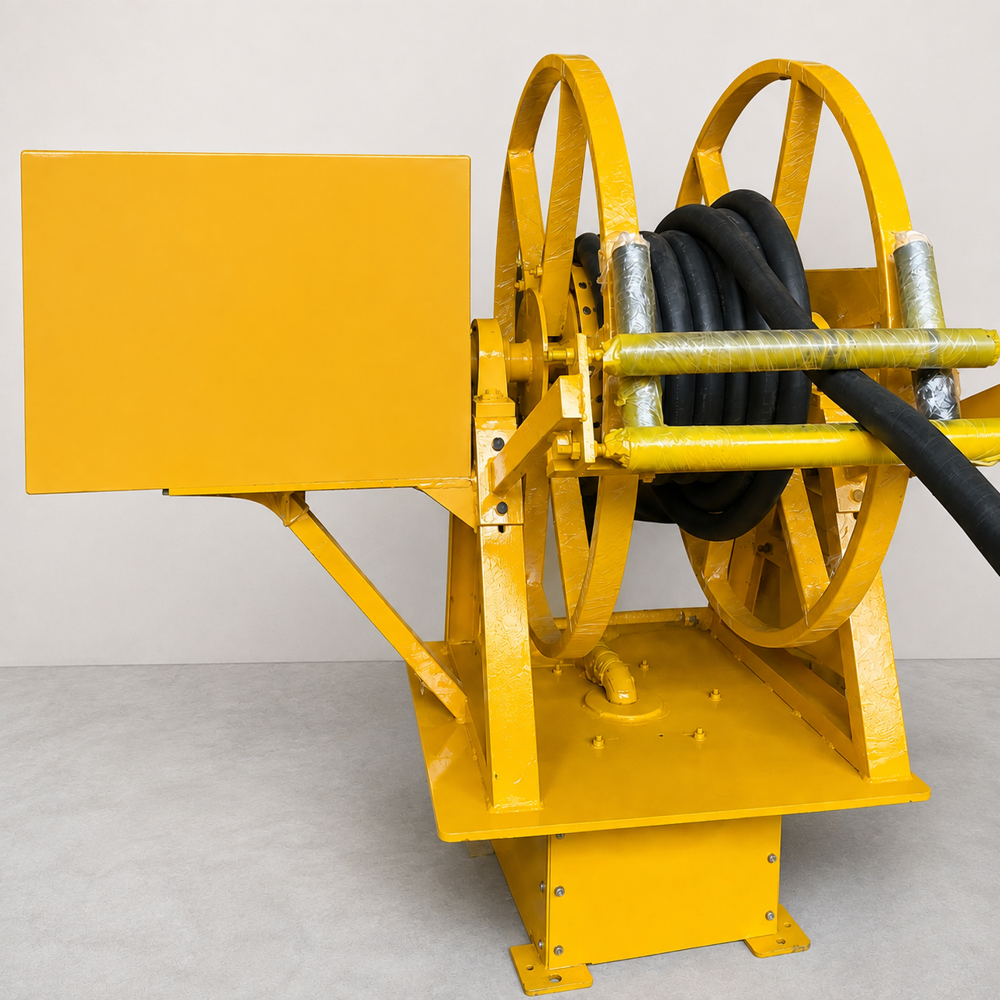

• Motorized Cable Reeling Drum

• Rated Temperature
• -10C to +80C

• Shield Material
• Galvanized Steel / Standard

• Size
• Customizable as per application

• Storage Temperature
• -20C to +60C

• Tensile Strength
• High (specific to cable type)

• Usage & Applications
• For power supply and signal transmission in cranes, hoists, material handling systems

• Voltage
• Other, 220V / 380V / 415V AC

• Weight
• Varies with design/model

• Application
• Industrial

• Color
• Gray

• Features
• Corrosion Resistance

• Material
• Mild Steel

• Size
• Customized

• Application
• Other, Electric hoists, EOT cranes, Machine tools, Portable power supply, Conveyors

• Armored Material
• Steel wire (on request)

• Cable Type
• Multicore Flexible Cable

• Color
• Yellow or Black (others available)

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Other, Flexible stranded

• Connector Color
• Black (standard), others on request

• Core Material
• Annealed Copper

• Core Number
• 3 to 5 cores

• Diameter
• Reel drum: 360 to 600 mm (depending on type)

• Dielectiric Strength
• 2.5 kV/minute

• Dimension (L*W*H)
• Varies by model (e.g., 500x400x180 mm for 20m drum)

• Features
• Auto-retractable mechanism, Sturdy steel construction, Heavy-duty spring, Maintenance-free operation, Corrosion resistant finish

• Impedance
• Custom as per requirement

• Install Type
• Horizontal or Vertical mounting

• Insulation
• High grade PVC Insulated

• Insulation Material
• Other, PVC/XLPE

• Jacket Color
• Other, Black / Yellow / Custom on request

• Jacket Material
• Other, Reinforced Rubber / PVC

• Length
• Available in standard lengths from 10m to 40m (customization available)

• Locking Type
• Ratchet lock system

• Material
• Heavy Gauge Steel & Industrial Grade Plastic (for covers as applicable)

• Number of Conductor
• 3 core/4 core/5 core options

• Operating Temperature
• -10C to +60C

• Product Type

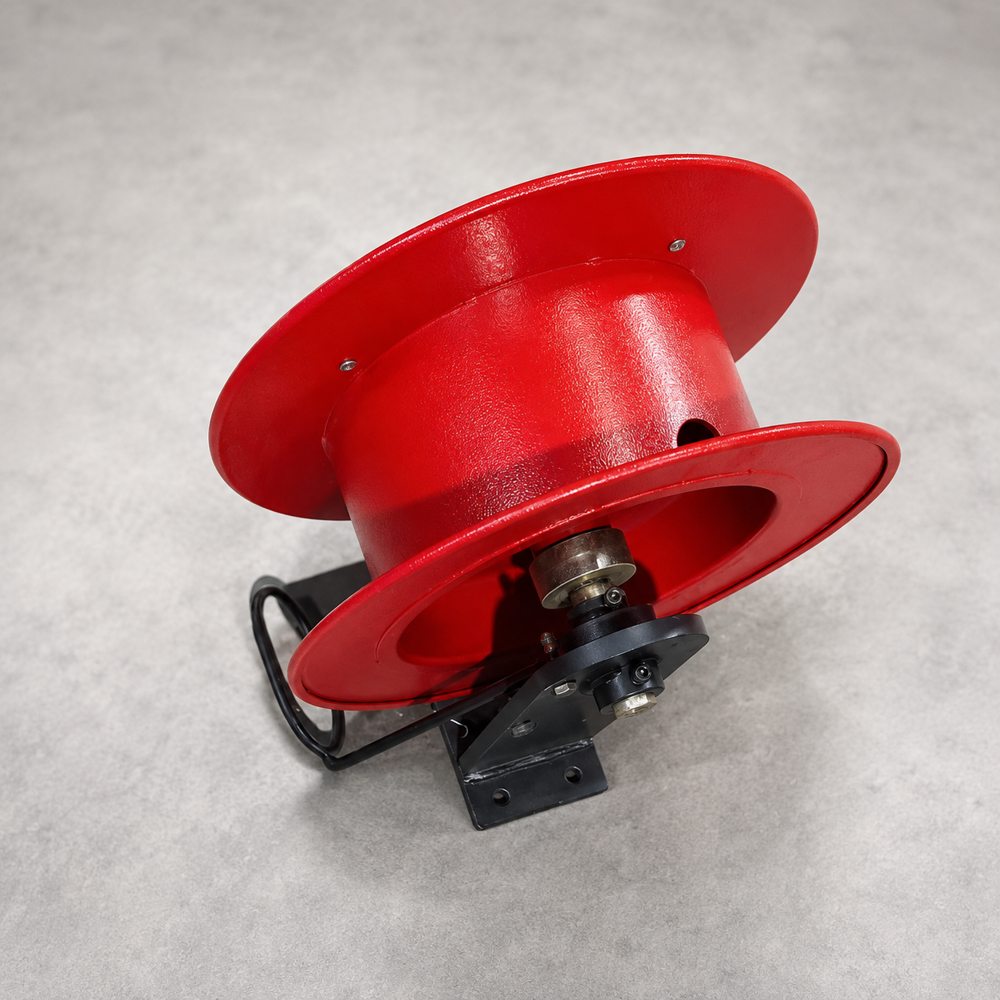

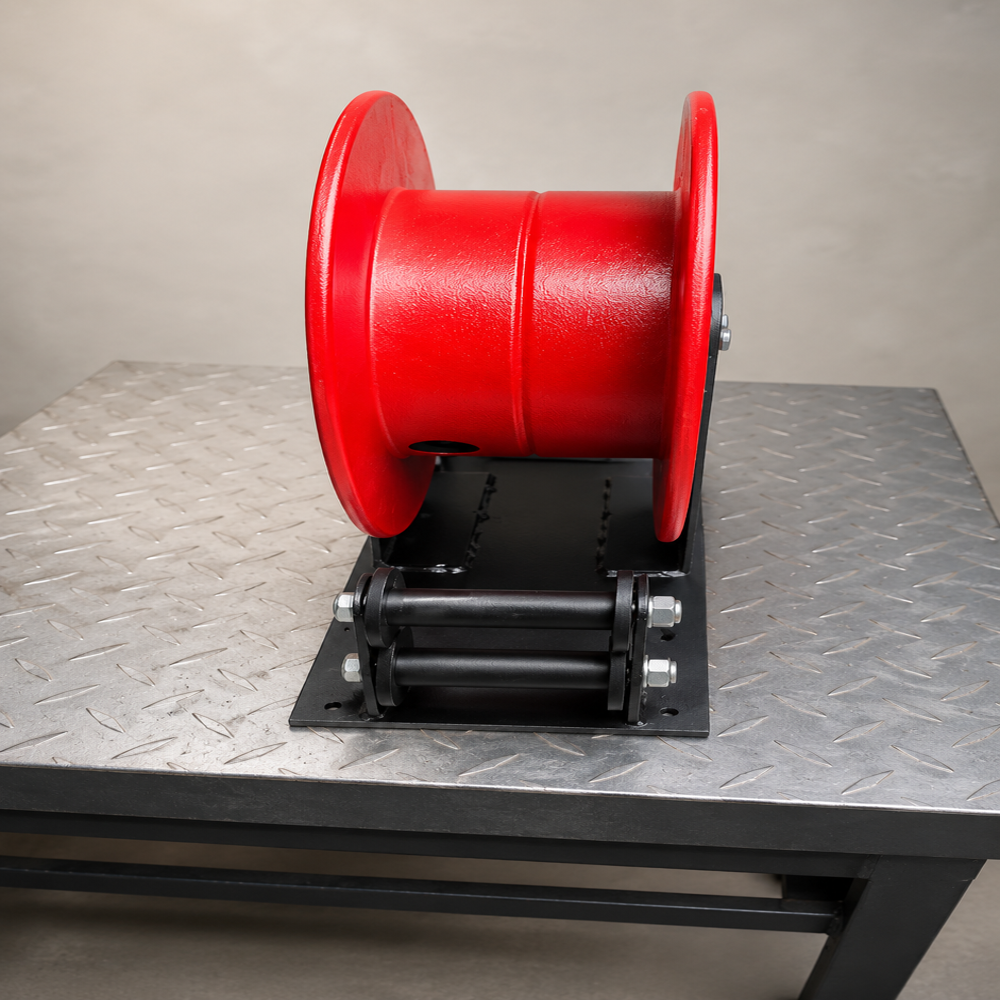

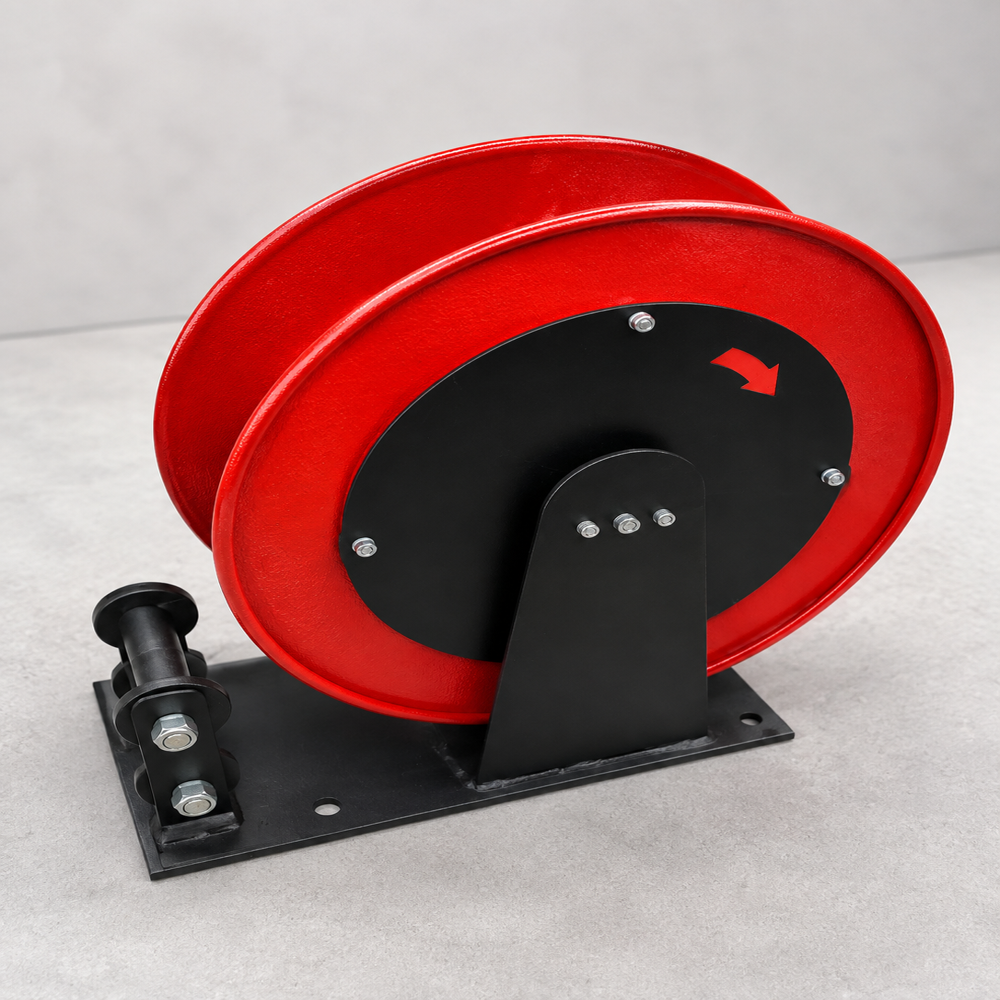

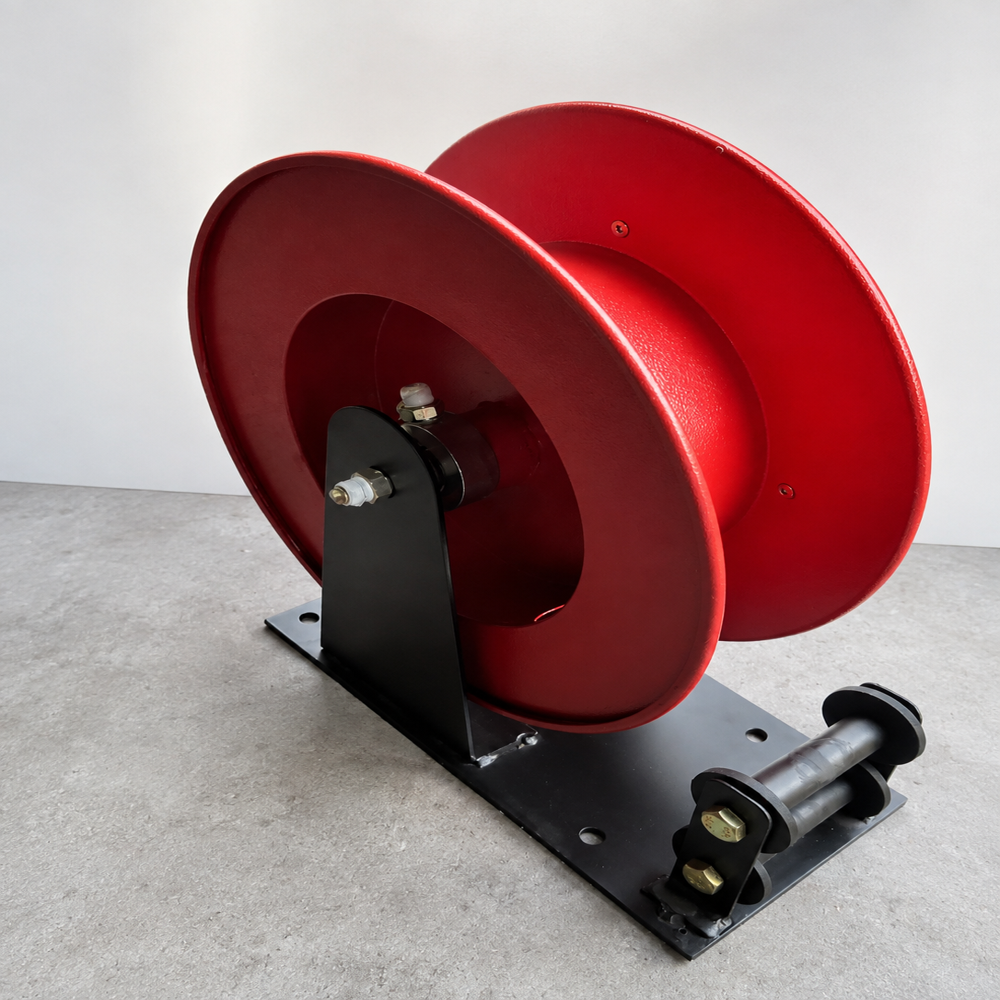

• Spring Operated Cable Reeling Drum

• Rated Temperature
• -10C to +60C

• Shield Material
• Galvanized steel (optionally copper)

• Size
• Customizable as per cable size & length

• Storage Temperature
• -20C to +60C

• Tensile Strength
• Above 250 N/mm2

• Usage & Applications
• Industrial power supply, Mobile machinery

• Voltage
• Other, Up to 1100 V

• Weight
• Depends on model (e.g., approx. 18 kg for 20m cable)
